(H)EV Auxiliary Inverters
We provide modular and scalable X-in-1 auxiliary inverters for commercial vehicle applications. Our auxiliary inverters cater to various types of new energy vehicles, including hybrid electric vehicles (HEV), battery electric vehicles (BEVs), and hydrogen fuel cell electric vehicles (FCEVs), such as passenger cars, logistics vehicles, buses, municipal vehicles, and more.
- Integrated and lightweight design
- Versatile application
- Quiet operation
- Enhanced safety
Whatsapp: +8619352173376
Email: contact@brogenevsolution.com
Auxiliary Inverter Systems
What is an Auxiliary Inverter?

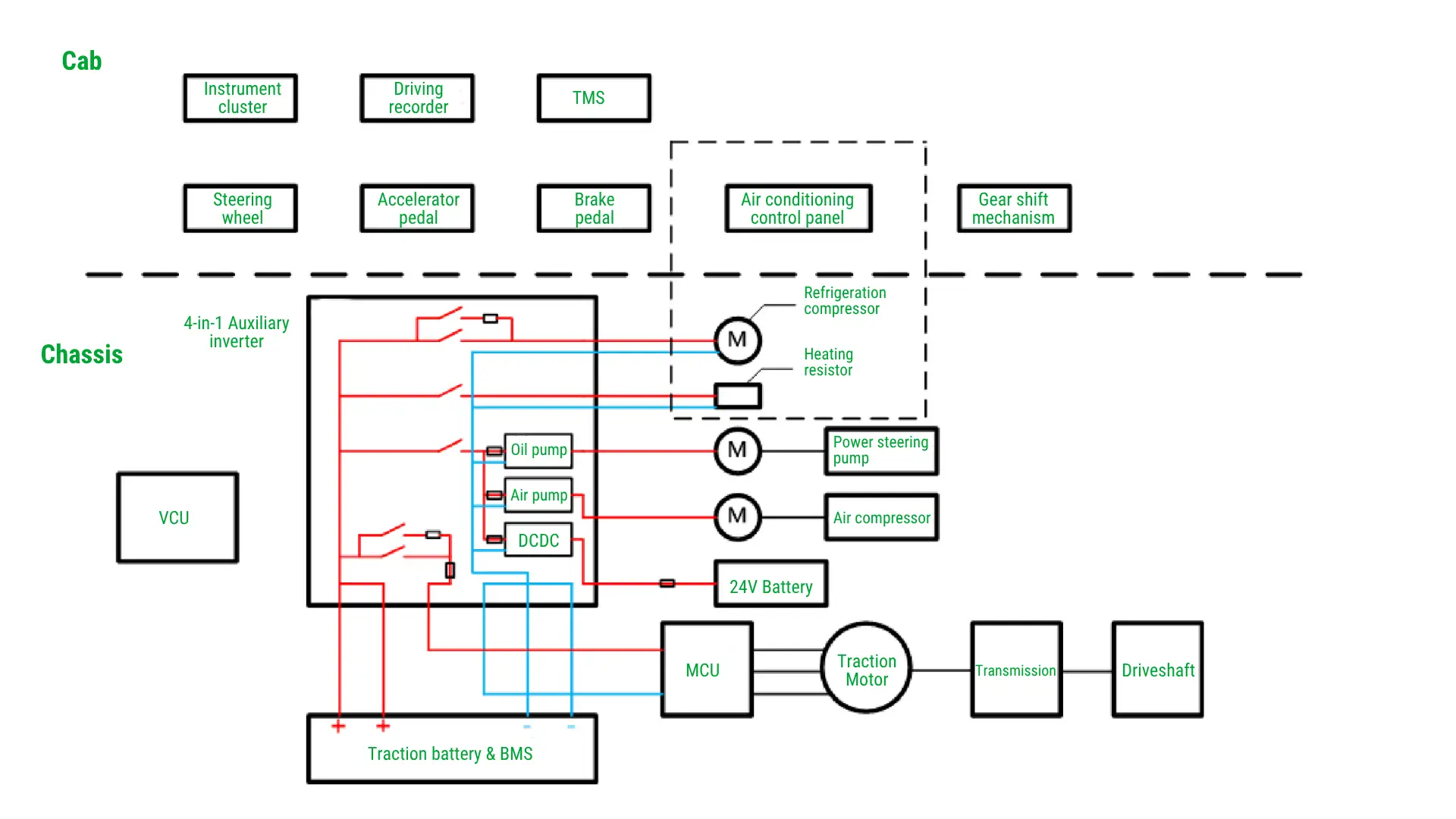

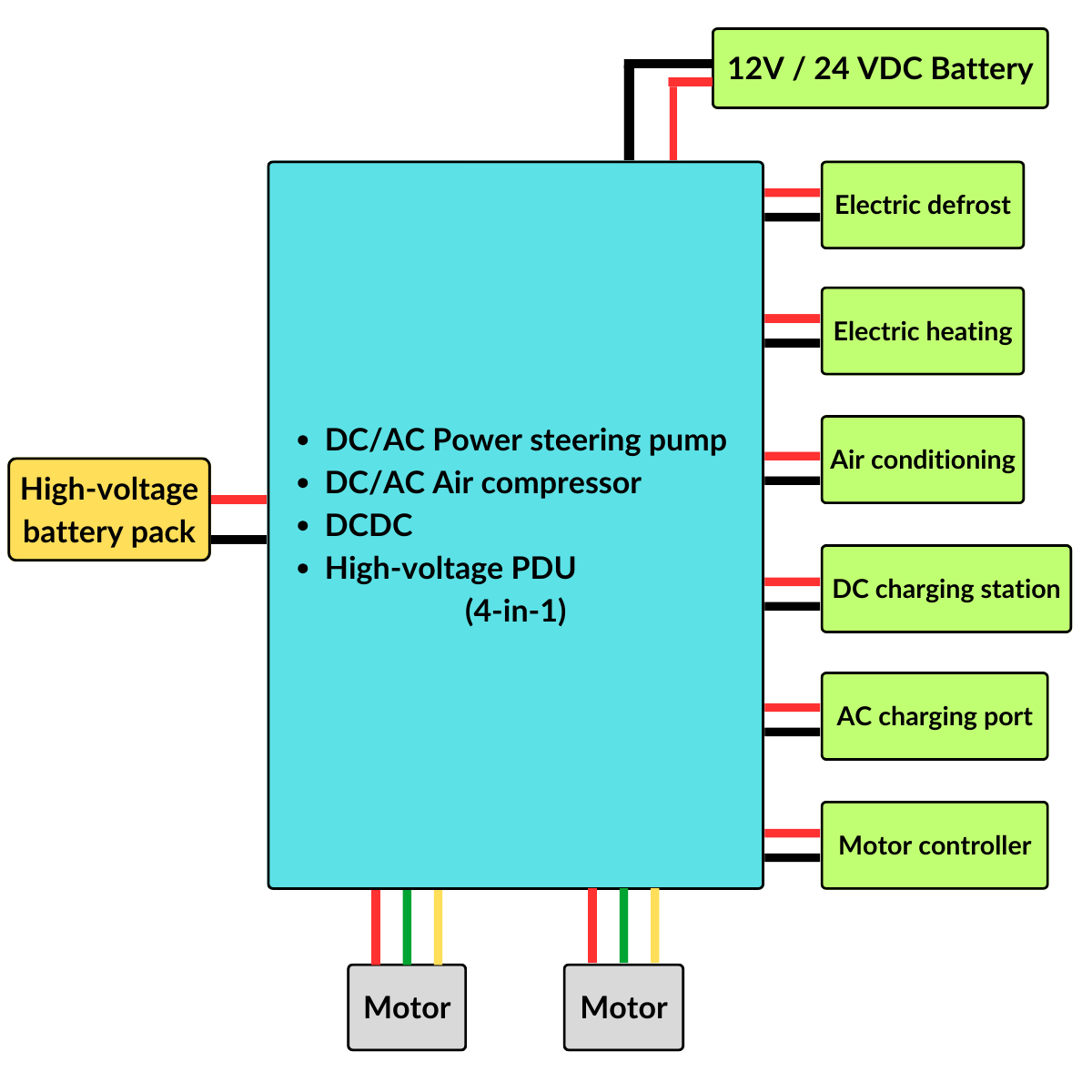

The auxiliary inverter is a sophisticated multi-inverter system designed specifically for auxiliary components in commercial vehicle applications. This system can integrate a DC/DC converter, DC/AC inverters, and a high-voltage PDU. The integrated auxiliary inverters offer exceptional control performance to meet the high-performance requirements of electric vehicle manufacturers. Through enhanced product reliability, improved environmental adaptability, industry-specific customization, and design optimization, this system achieves the goals of optimized functionality, increased application flexibility, and more stable performance.
- The DC/DC converter transforms the high voltage from the EV traction battery into low voltage to charge the onboard battery and supply DC power to low-voltage components.
- The DC/AC inverter converts the high-voltage DC power from the EV traction battery into three-phase AC power, controlling the electric air compressor and steering pump motor to maintain proper vehicle air pressure and power steering functionality.
- The high-voltage PDU is a control component of the power supply system. It provides functions such as power distribution, current measurement, short-circuit protection, charge and discharge control, pre-charging, manual emergency stop, and insulation monitoring.
Why Choose Us
Customized Auxiliary Inverters
Scalable
The scalable and modular design offers flexibility to accommodate various vehicle types and configurations, ensuring seamless integration and customization to meet specific needs.
Cost-Effective
Our auxiliary inverter solution eliminates the need for individual inverters for each auxiliary component, reducing redundanct elements, resulting in cost savings adn improved efficiency.
Compact
The integrated and lightweight design reduces system weight and size, delivering substantial space, wiring, and cost savings for electric commercial vehicle applications.
High Reliability
By minimizing connections, the stability of our auxiliary inverters is largely enhanced, and the installation and maintenance are also simplified thanks to the compact design.
Solutions
For Commercial Applications
- DC/AC oil pump / air pump
- Powerful hardware system
- Selection and application of automotive-grade components, equipped with multiple hardware and software protection functions to enhance product reliability.
- Excellent user experience
- Independent junction box structure design for safe and quick wiring; high power density; small product size, and flexible application.
- Reliable protection design
- High protection and wide temperature range product design to adapt to various harsh application environments.
- DC/AC oil pump; DC/AC air pump; DC/DC converter
- Powerful hardware configuration
- Key components use automotive-grade parts to enhance product reliability.
- Efficient operation
- Controller efficiency up to 98%, high power density, and more flexible application.
- Reliable protection design
- High protection level for the entire machine and a wide operating temperature range to better adapt to various harsh application environments.
- DC/AC oil pump; DC/AC air pump; DC/DC converter; PDU
- Powerful hardware configuration
- Key components use automotive-grade parts to enhance product reliability.
- Efficient operation
- Controller efficiency up to 98%, high power density, and more flexible application.
- Reliable protection design
- High protection level for the entire machine and a wide operating temperature range to better adapt to various harsh application environments.
Key Product
4-in-1 (H)EV Auxiliary Inverter
- Integrated and lightweight design: this Auxiliary Inverter boasts a 4-in-1 integrated design, significantly reducing system weight and size. This approach not only offers a lightweight solution but also delivers substantial space, wiring, and cost savings for electric commercial vehicles.
- Versatile application: designed to excel across diverse work conditions, the Auxiliary Inverter operates flawlessly within a temperature range of -40°C to 60°C. With an IP67 rating, it proves suitable for electric commercial vehicles across various challenging environments.
- Quiet operation: engineered for minimal disruption, our Auxiliary Inverter operates at less than 42 dB, ensuring a tranquil driving experience for both drivers and passengers.
- Enhanced safety: rigorously tested for safety and reliability, our product has undergone a series of assessments including low temperature, high temperature, humidity, salt spray, vibration, mechanical strength, noise, insulation performance, and voltage withstand tests.
Case Study
Electric Hybrid Semi-Truck Project in Canada
Edison Motors is a Canadian clean technology company that manufactures electric semi-trucks. For this project, we supplied our compact auxiliary inverter system. This integrated solution combines a DC/DC converter, DC/AC inverter, and high-voltage PDU, offering versatility across various vehicle types, including HEVs, BEVs, and FCEVs. Ideal for applications in passenger cars, logistics vehicles, buses, municipal vehicles, and semi-trucks, our system enhances efficiency and performance, meeting the diverse needs of modern electric transportation.
