30 kW / 70 kW Electric Axles for Pickup Trucks, Mini Trucks, Vans
Our 30 kW / 70 kW electric axles for pickup trucks, mini trucks, and vans are engineered with a lightweight and compact architecture, reducing both weight and space for light commercial vehicles.Â

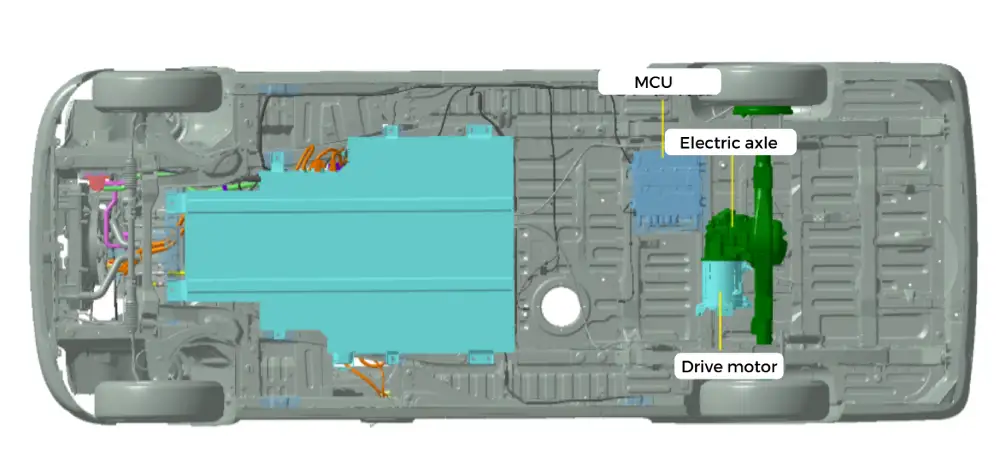

With a highly compact design, the motor and gearbox are integrated directly into the rear axle, enabling easier installation, simplified layout, and improved energy efficiency. This integration also contributes to a more sustainable and environmentally friendly vehicle platform.

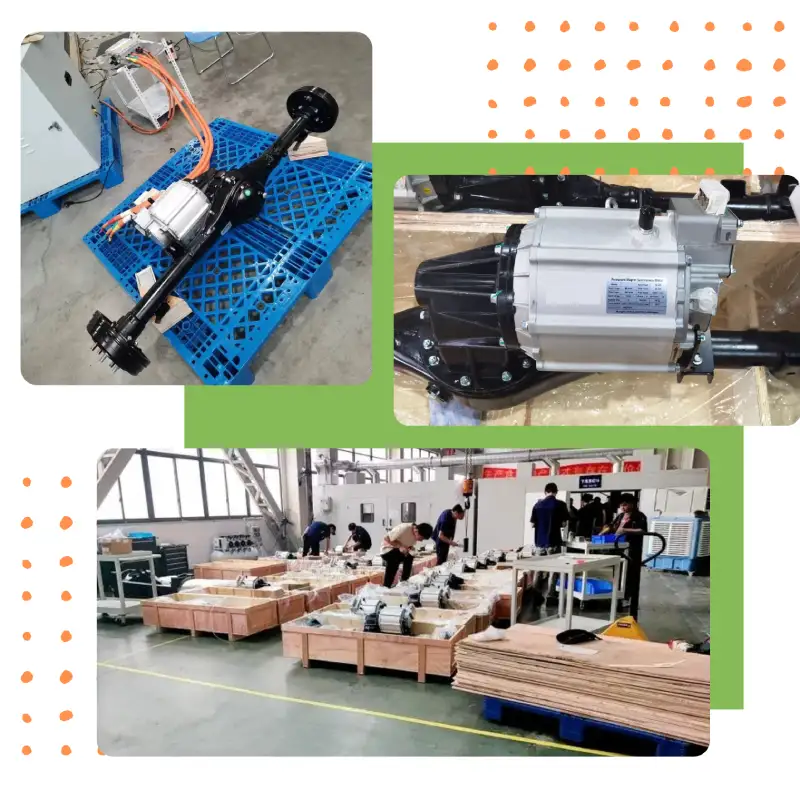

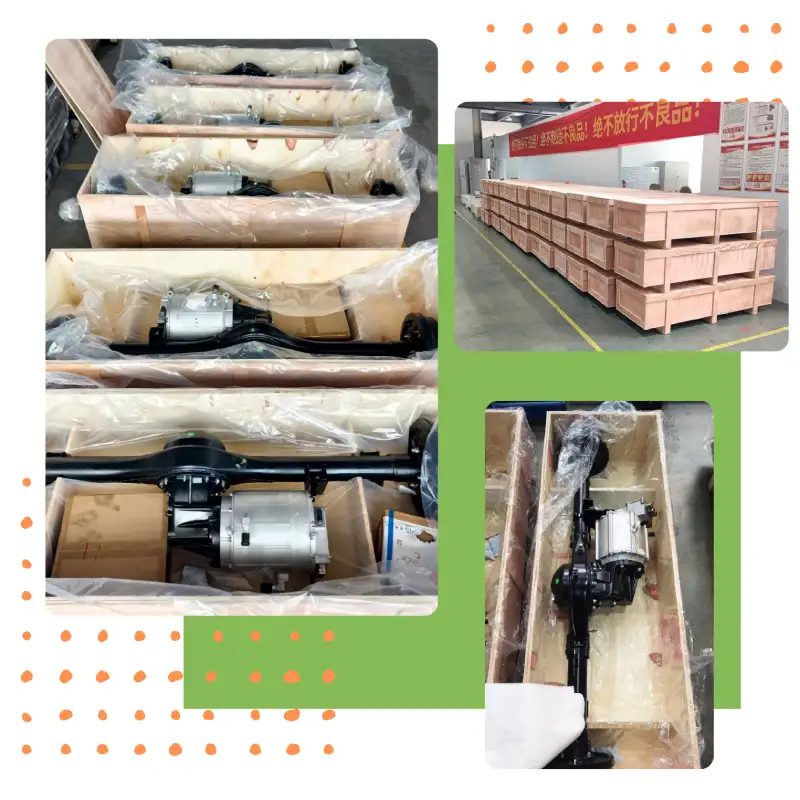

Currently, this solution has entered the SOP phase and is now in mass production, with large-scale deployment across electric mini truck platforms.
Email: contact@brogenevsolution.com
Solution Details
- High integration: compact structure, efficient transmission
- Fully release the X-direction space for battery layout
- Lighter system weight than traditional central drive system
- Low development difficulty, low manufacturing cost
- Better overall performance indicators such as the driving performance, economu, and EKG value
| Model | OEHY-192 |
| Rated power | 30 kW |
| Peak power | 70 kW |
| Rated torque | 80 N.m |
| Peak torque | 230 N.m |
| Rated speed | 3600 rpm |
| Peak speed | 9000 rpm |
| Cooling method | Liquid cooling |
| Final drive ratio | 10.5:1 |
*The specifications may vary based on configuration, and customization options are available. For detailed parameter information, please contact us at: contact@BrogenEVSolution.com
Case Studies
Electric Mini Truck Project in Thailand
A Thailand-based OEM sought to develop an electric mini truck prototype and engaged us to provide an electric powertrain solution. After assessing their vehicle requirements, we supplied our integrated e-axle system with an MCU, along with a 3-in-1 CDU combining the OBC, DC/DC converter, and PDU.
Throughout the development phase, our engineering team customized and optimized the software to match the client’s vehicle architecture. Our experts remained on standby to provide prompt technical support and resolve any issues encountered during integration and testing.
Within less than a year, the customer placed a second purchase order for further vehicle validation. Following a successful full-vehicle testing, the electric mini truck entered mass production.
Refrigerated Pickup Truck Conversion Project in the United States
A U.S.-based fleet operator specializing in refrigerated pickup trucks aimed to electrify its fleet to achieve more sustainable operations and reduce long-term operating costs. After receiving the complete vehicle specifications and refrigeration system requirements, we proposed our 70 kW electric axle purpose-built for pickup applications, along with other auxiliary systems.
- 30kW / 70kW electric axle for pickup trucks
- DC/DC converter
- Electric air-conditioning compressor
- Electric water pump
- Air brake compressor
