Electric Street Sweeper: Leading the Way in Urban Sanitation Electrification
Introduction: Electrification Is Reshaping Urban Sanitation
As cities around the world prioritize sustainability, the transition to electric vehicles (EVs) has become increasingly significant. One key player in this movement is the electric street sweeper, a revolutionary piece of sanitation equipment that combines powerful performance with environmental responsibility. This electric road sweeper represents a game-changing step forward in municipal cleaning technology, offering a cleaner, quieter, and more efficient alternative to traditional diesel-powered models.
This case study highlights a production electric street sweeper model, demonstrating how electrification is transforming the industry — and how we can support street sweeper manufacturers with tailored electrification solutions, including high-performance motors, battery systems, and charging technologies.
A Benchmark in Electric Street Sweeper Design

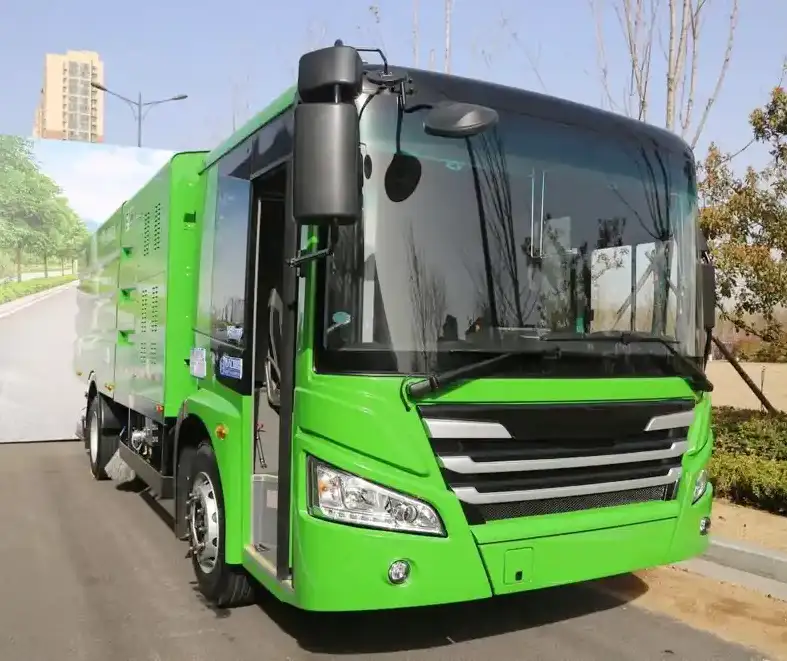

The electric sweeper featured here represents a new generation of urban cleaning equipment:
- Dimensions: 9270 × 2490 × 3150 mm
- Curb weight: 8.05 tons
- Gross vehicle weight: 18 tons
- Sweeping width: Standard 4.1 meters; Deep-cleaning mode 2.4 meters
- Tank capacity: 8.5 m³ freshwater, 7.5 m³ wastewater
- Functions: Full sweeping and washing, one-sided sweeping, deep cleaning, winter water-blow, high-pressure tank self-cleaning
This electric sweeper is engineered for high performance in city streets, municipal squares, industrial sites, and more, delivering superior cleaning efficiency while reducing environmental impact.
Core Electrification Technologies
1. High-Efficiency Electric Motor

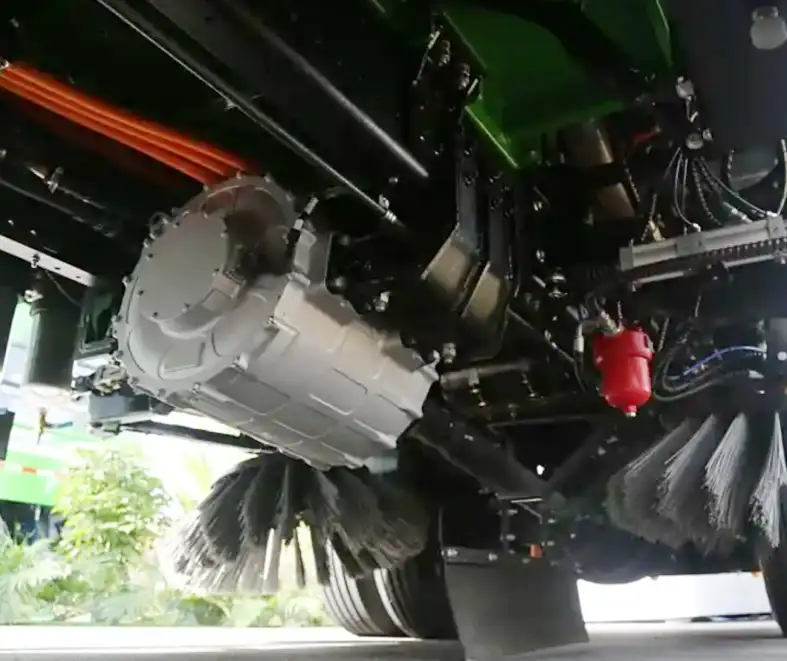

The electric street sweeper is powered by a permanent magnet synchronous motor, which offers 350 kW peak power (about 476 horsepower), ensuring strong and reliable performance under various urban conditions. The motor operates with a high efficiency rate of 98%, converting electrical energy into mechanical power with minimal loss.
Key benefits of this electric motor include:
- Mud and condensation resistance: Ensures the motor stays protected even in challenging working environments.
- 8-year maintenance-free bearings: Reduces maintenance costs and extends the lifespan of the vehicle.
- IP68 & IP6K9K protection levels: The motor is protected against water, dust, and debris, allowing it to perform reliably even under extreme weather conditions, including heavy rain and floods.
2. Multi-In-One Controller for Optimized Energy Efficiency
This electric street sweeper is equipped with a carbon-silicon (SiC) multi-in-one controller. This state-of-the-art controller is designed for high efficiency and low energy consumption, and it offers a host of advantages:
- Energy savings: The system boosts overall energy efficiency by 8%, allowing the vehicle to run longer on a single charge.
- Reduced failure rates: The failure rate is reduced by 25%, ensuring more reliable performance.
- Weight reduction: The controller weighs 50% less than traditional models, helping to improve the vehicle’s overall energy efficiency and performance.
Together, these elements combine to make the electric road sweeper a highly reliable and efficient vehicle for urban sanitation needs.
3. Powerful and Efficient EV Battery Design

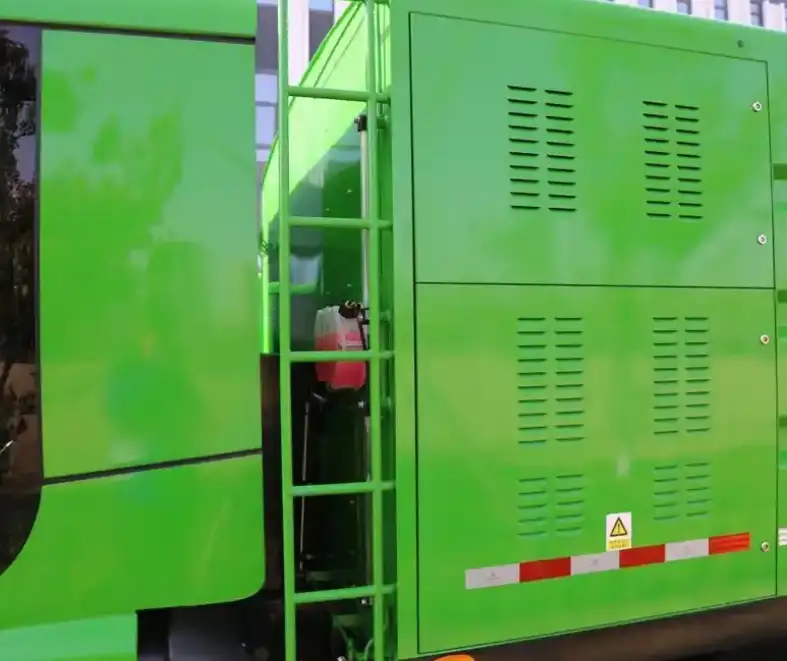

At the heart of this electric sweeper is a high-capacity EV battery system that ensures both longevity and performance. The electric street sweeper’s battery is housed behind the driver’s cabin and is designed for long-lasting power:
- Rated voltage: 589.26V
- Rated capacity: 456Ah
- Total energy capacity: 268.7 kWh
This system provides excellent energy density, achieving 175Wh/kg, which allows for longer operational times between charges. Moreover, the battery has been engineered for durability with an IP68+IP6K9K protection level, allowing it to withstand extreme conditions — including up to 72 hours submerged under 2 meters of water.
4. Fast Charging Capabilities

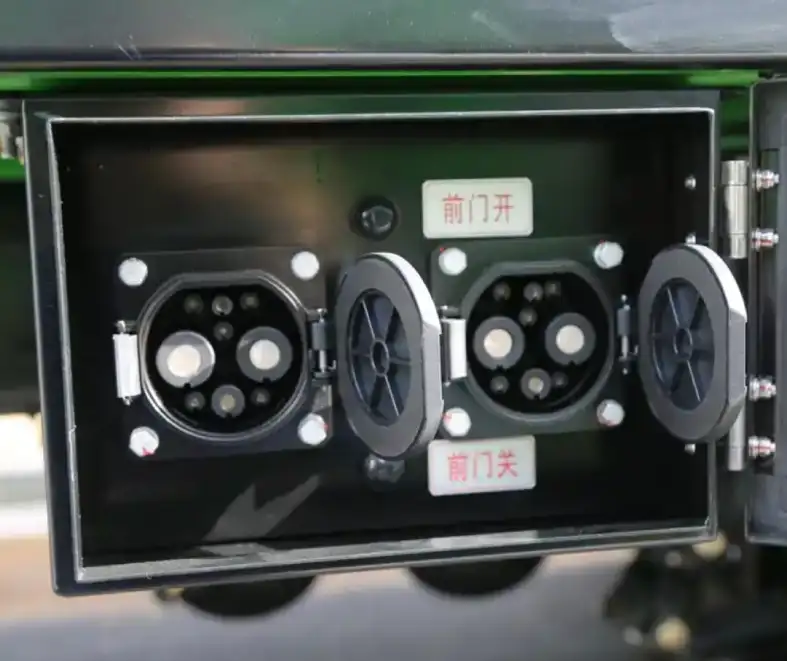

The electric street sweeper incorporates fast-charging technology that dramatically reduces downtime:
- Single gun fast charge: 300A
- Dual gun fast charge: 600A
This unique charging system increases the charging speed by 20%, ensuring the sweeper is ready to return to work quickly, minimizing the interruptions to city cleaning operations. With the combination of fast charging and long-lasting battery capacity, this sweeper is built to tackle large-scale urban cleaning projects without requiring extensive downtime.
Environmental and Economic Impact
Sustainability Benefits
The electric street sweeper is a key part of the ongoing effort to electrify municipal vehicles and reduce urban pollution. Unlike traditional fuel-powered sweepers, which emit harmful pollutants and contribute to greenhouse gases, this electric sweeper has:
- 10% of the energy consumption compared to a diesel-powered model.
- A significant reduction in carbon emissions, supporting cities in their sustainability efforts.
Cost-Effectiveness
Additionally, the operating costs are significantly lower than those of diesel vehicles:
- Lower fuel costs due to the use of electricity instead of diesel.
- Reduced maintenance costs thanks to the maintenance-free bearings and robust motor design.
The vehicle’s overall economic performance and long-term cost savings make it a highly attractive option for municipalities looking to upgrade their sanitation fleets without sacrificing performance.
Partner with Us: Your Expert in Electric Street Sweeper Solutions
Electric Powertrain Solution
- The motor achieves a maximum efficiency of over 97%, with the system efficiency exceeding 90% in 90% of the operational range.
- 2m 72h extreme water-proof, sediment-proof structure, anti-condensation structure, long-life bearing and oil seal.
- Noise at full speed section of motor ≤72dB(A), linearity≤2dB(A).
- Lightweight design
X-in-1 Integrated Controller
- Maximum efficiency>99%
- EMC reaches class 5 under no-load
- Functional safety level ASIL C
- Motor controller+steering controller+air compressor controller+DC/DC+high voltage power distribution

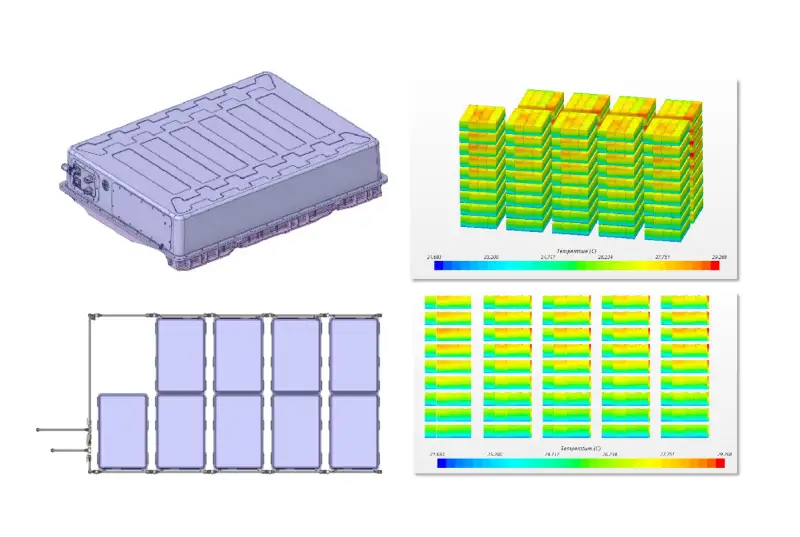

- Full system integration of battery Pack+BMS+BTMS+PDU
- Premium battery cells from top battery cell suppliers
- Excellent thermal management strategy for enhanced reliability
- Lightweight design with alumium alloy composites for battery box
- Tailored solutions from project consulting, product delivery to after-sales support.
- Professional training for installation, operation, and maintenance.
- Free technical support throughout the product lifecycle for safe and efficiency operation
- 60 kW to 420 kW integrated DC fast chargers with CCS2 standard
- 80 kW to 400 kW integrated DC fast chargers with GB/T standard
- Power distribution system
- Charging operation management system, flexible user-friendly payment and charging options
- Security & monitoring system
- Fire safety system
